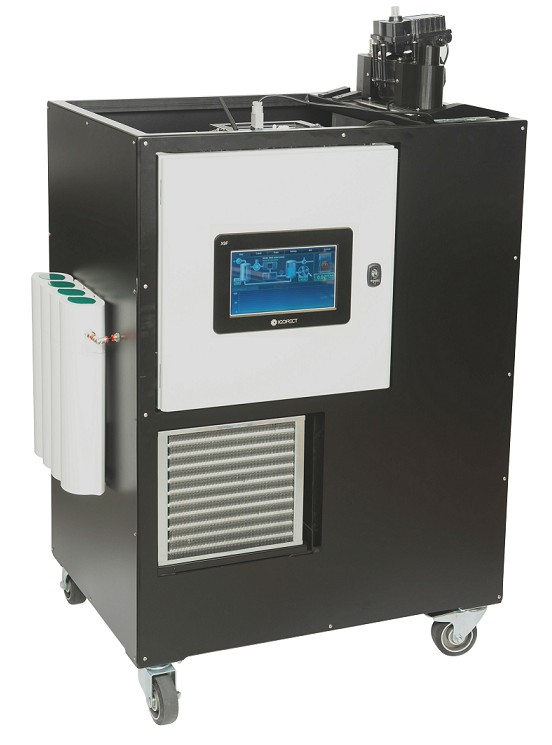

C-Maxione

Adiabatic Microclimate Module

Independent active micro-climate control module for large display cases and cabinets in museums.

Use: Humidification and/or dehumidification - Technology: adiabatic.

Operating Range: 30-75 RH% For display cases/display cases up to 400 cubic meters @ 15-35°C temperature range - Leaks excluded.

Coolable Volume: Max. 15 m3 for perfectly airtight enclosures operating under optimal conditions.

Display: 10-inch LCD touch screen (color).

Communication: RS485 ModBus RTU - LAN Ethernet ModBus TCP/IP - Wireless (optional).

Power Supply: 230 VAC - Single Phase - 50-60 Hz (15A).

Electrical Consumption: Nominal 12 Amp - Max. 30 Amp.

Water Supply: 1/4" connection for connection to a domestic water system - Optional Tank.

Drainage: Floor drain or optional containment tray.

Operating Temperature: 15-35°C - Caution: Ambient temperatures have no effect on operation, but may affect humidification capacity.

Intake Filters: Combined Carbon/PP/Fine Particulate Filters.

Exhaust Filter: HEPA Grade (or as specified).

Enclosure: Metal, IP20 floor-standing enclosure.

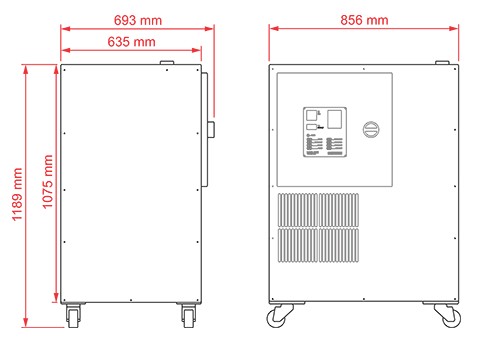

Dimensions: Width 856 cm x Depth 695 cm x Height 1190 cm (including 11 cm of caster wheels).

Weight: Approx. 200 kg empty and 250 kg with a full tank (water).

Accessories: External Alarms - Remote sensor to be mounted in the display case - Automatic electromechanical drain valve - Operating Manual English.

Software Option: CEAM ©CWS WEB IoT Platform - Optional web-based management software - Also available in public cloud service at www.cws.cloud .
