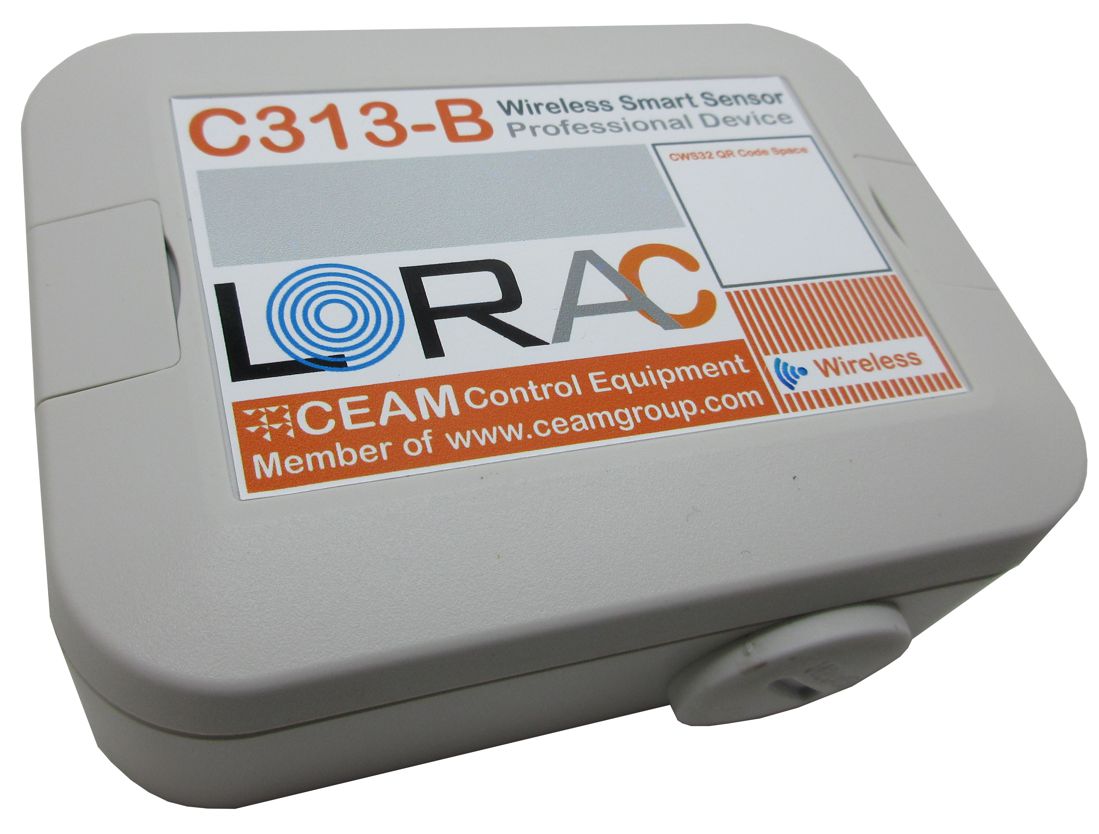

C313-B Wall mounted

Wireless CEAM®LORA-C Smart Sensor

Product Function: Wireless Smart Sensor - Ceam® LORA-C long-distance bus for acquisition with analog and digital sensors

Measurement Probes: Integrated and external sensors with cable and connector depending on model

Use Type: Portable and Fixed, Can be used in real-time via Ceam® LORA-C wireless with CWS-CWIZION platform

Input Type List:

PT100 Temp. (Typical Ranges - Sensors not included - Except for models with integrated sensor)

T/C (Typical Ranges - Thermocouples not included)

RH% (0÷100%) Temp. (-40÷125°C) - Sensors not included - Except for models with integrated sensor

Water Flooding: Logic = Wet - NOT Wet

Load Cells (Typical range of the cell used - Cells not included)

Analog Signal Input: 4÷20 mA and 0÷10V

Number of Inputs: Single

Com Port: Mini USB (Configuration)

Wireless Communication: Ceam® LORA-C 868 MHz - Range 200 to 1200 m depending on environmental conditions

Power supply: Non-rechargeable battery – long life (2–6 years) or 5 V DC power supply with internal battery UPS function.

Housing: Plastic, suitable for wall mounting - IP67

Dimensions: Varies depending on model

For further details, consult the downloadable documentation or contact CEAM customer service
