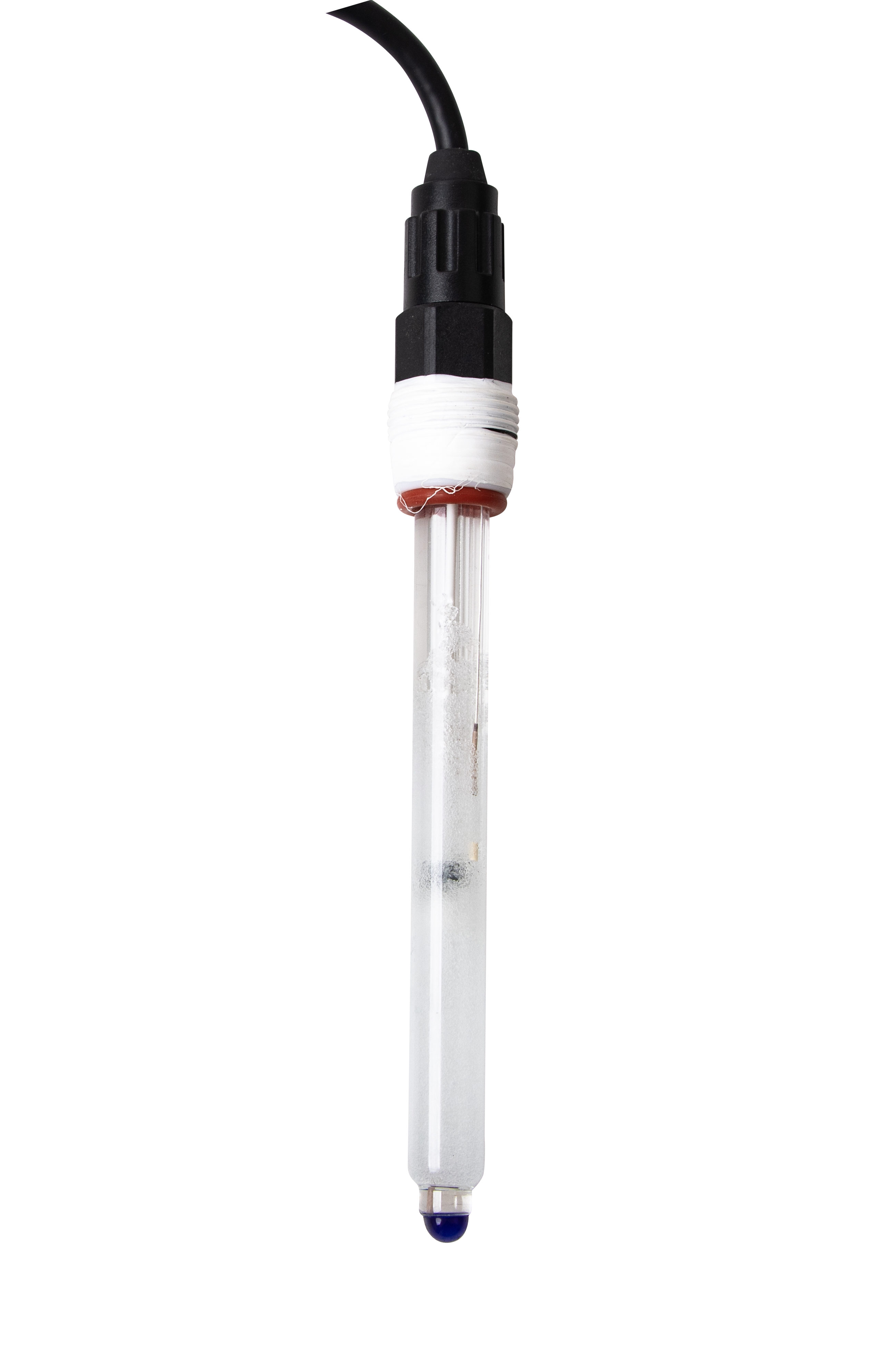

CPH-ASP2330

pH electrode

Function: pH electrode

pH Measurement Range: 0.00 – 14.00 pH

pH Accuracy: 0.1 pH

pH Value at Zero Potential: 7 ± 0.1 pH

Temperature Range: 0°C – +100°C

Temperature Accuracy: ± 0.5°C

Temperature Sensor Type: Pt1000 / Pt100 / NTC 2.252K / NTC 10K / NTC 22K / NTC 30K

Maximum Pressure: 0.6 MPa

Membrane Impedance: <150 MΩ or <450 MΩ

Reference System: Ag / AgCl / KCl

Electrolyte: SNEX solid gel for high temperatures

Liquid Junction: Annular ceramic junction

Construction Material: Glass

Process Connection: PG13.5 thread
