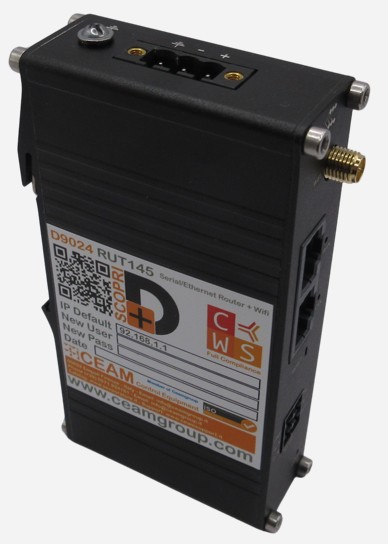

D9024-RUT145

Router RS485-Ethernet + WiFi

Product Function: RS485/Ethernet Serial Communications Gateway Router + WiFi AP

Network Port: 2 x RJ45 LAN Ethernet T10/100 - LAN - WAN

Serial Port: 1 x RS485

Wireless: WiFi AP - RP-SMA Connector - Whip Antenna Included

Power Supply: 9-30 Vdc + Passive POE

Power Consumption: <1W (Max Load 2W)

Housing: Aluminum Din-Rail IP20

Dimensions: 113.10 x 25 x 68.6 mm

Network Connection: 2 x RJ45 Connectors

RS485 Connection: Special 6-Pin Connector Included

Power Connection: Special Connector Included

Ground Connection: Power Connector + Screw Connection on the Housing

For more information, refer to the downloadable documentation or contact customer service
